Project Description
| Payload 50kg | Motion control kit | Anti rollover design |
| 2m splicing rail | Aviation aluminum alloy | Light rack tripod |
| CNC refined dolly | Silent rail | Roller bag |
| Elevated support feet | Standard 75 & 100 bowl seat /optional 150 bowl seat |

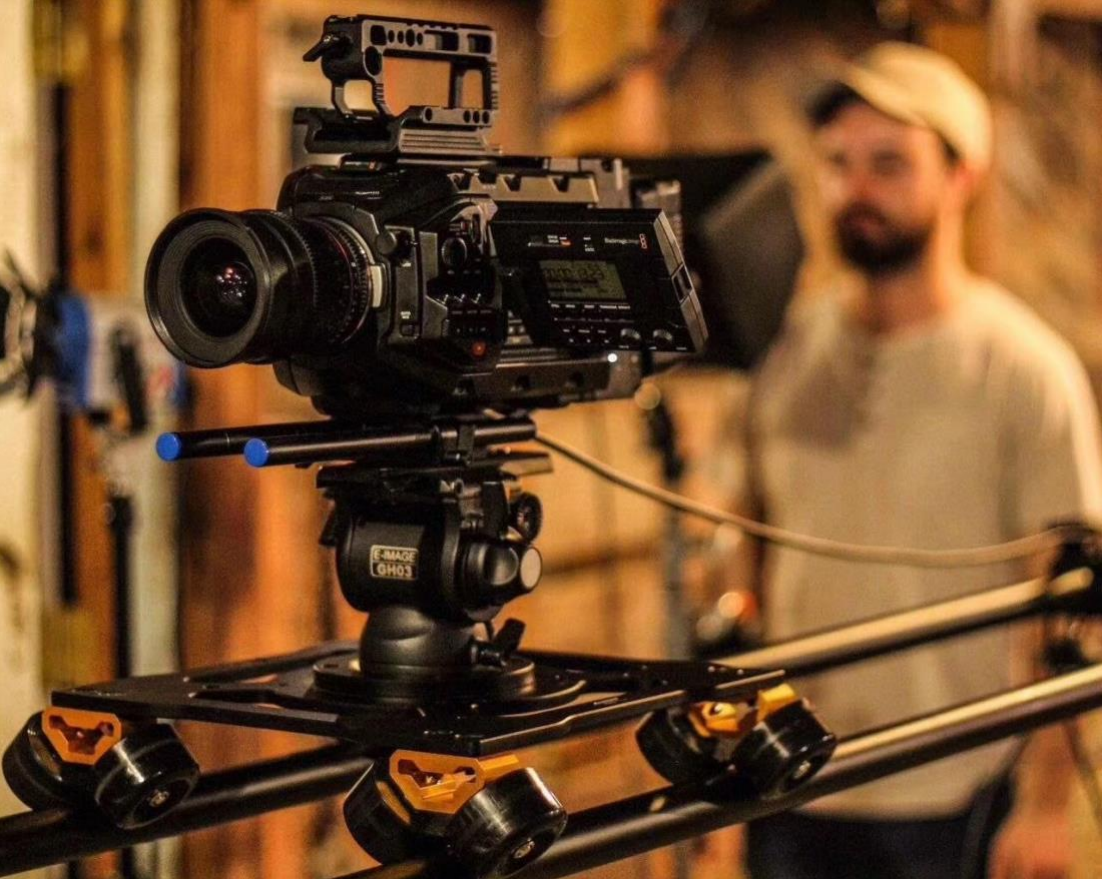

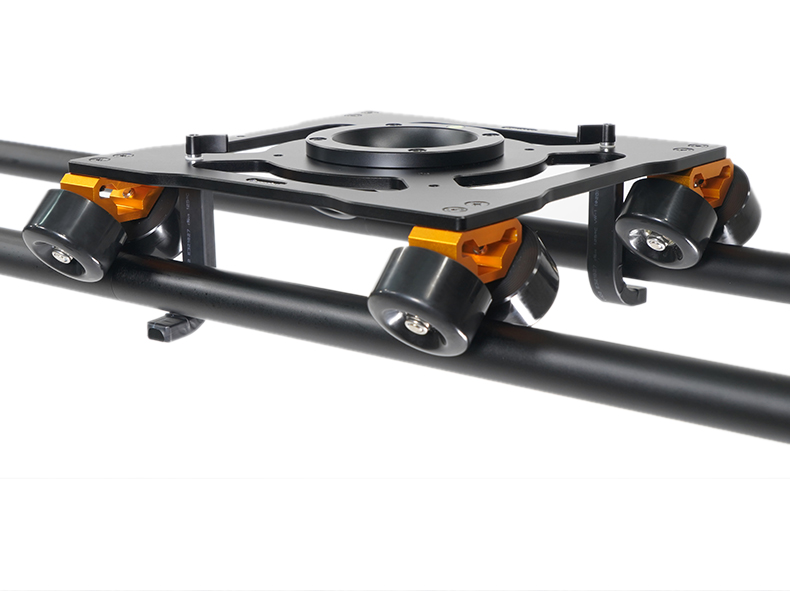

8-wheels Dolly
CNC refined ,aluminum alloy dolly is equipped with high elastic silent rail.
Multi Aperture Pan Tilt Stand
Equipped with 100&75mm bowl and 150mm bowl optional which is inclusive and flexible.
2M Spliced Rail
Payload 50kg. Precision docking of stainless steel thread can combine a variety of length and carry easily.
0.8 M Elevated Feet
Standard and elevated type and stable like a stone ,can equipped with various lampstands, magic legs and tripods.
Roller Bag
Put whole set into roller bag , which can be carried easily by single person.

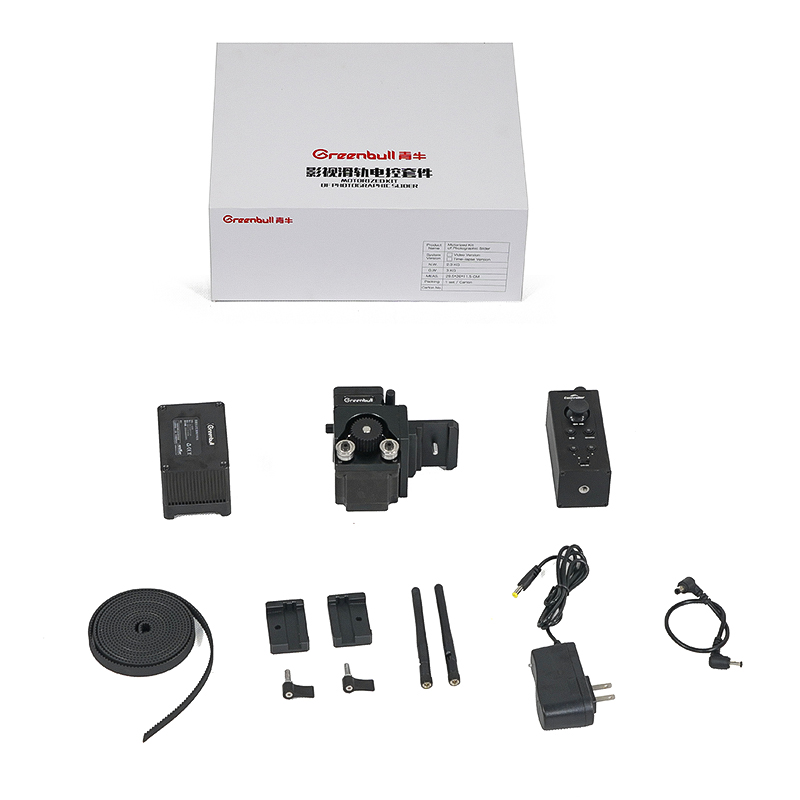

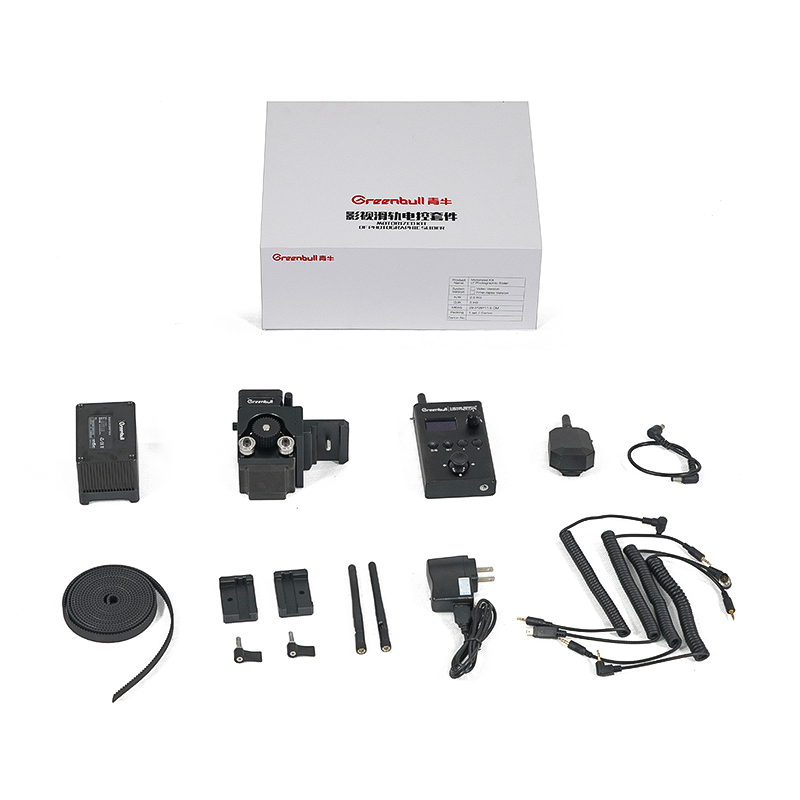

Motion Control Component (optional)
Divided into two versions: video /time-lapse shooting version.
Main functions: high torque, time-lapse,automatic loop, AB point setting, gently start-stop. With 2.4 G wireless control, it features anti-interference, sensitive response speed and zero delay.
* Patent for utility model: an electronic control system for film and television sliders; patent No.: ZL201920295090.X
Automatic Loop
Can operate between user-set target distance at required speed,lets you be creative without the stress of crashing or relying on a spotter. It’s perfect for capturing great moments in seconds!

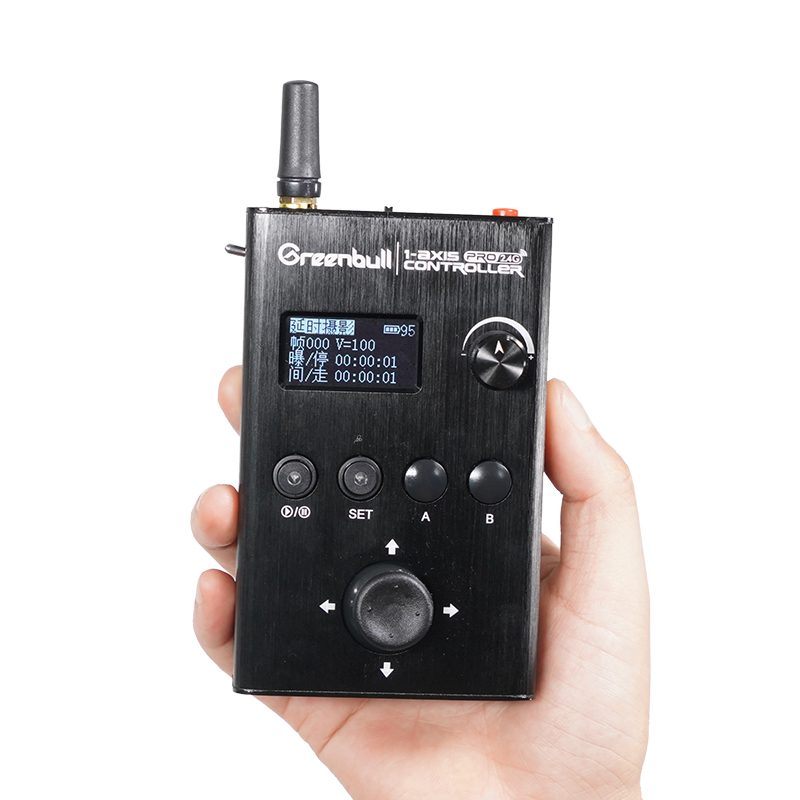

Time-lapse Shooting
Synchronized with the camera shutter, that is, when shutter closed, dolly operates;dolly stops when the shutter is exposed.Frames, exposure and interval time also can be set and modified according to the shooting needs.
Setting of AB Ponit
Set and change the range of dolly operation,free and flexible

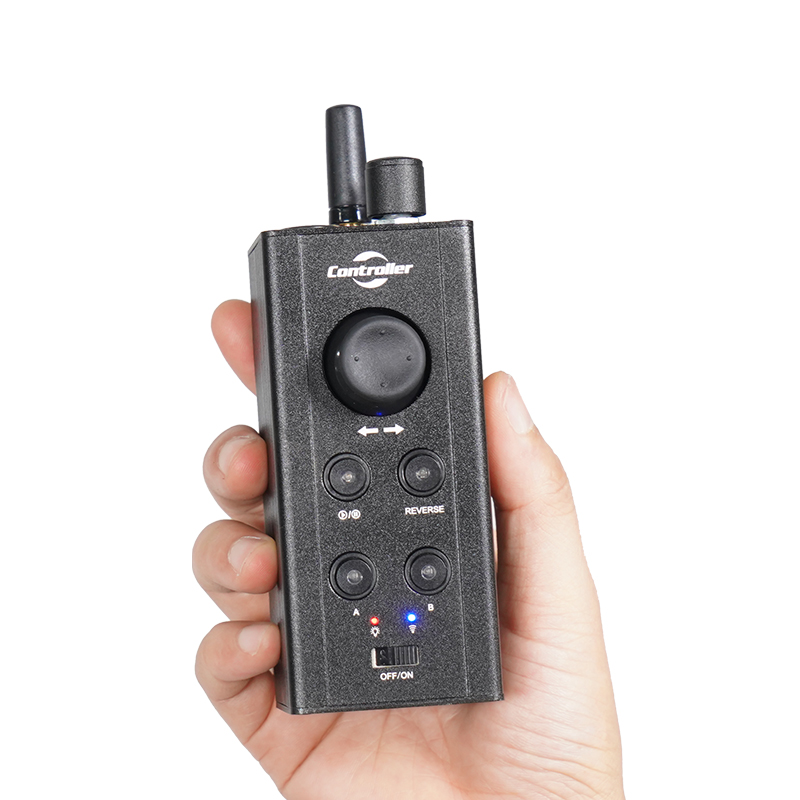

Wireless Remote Control
Equipped with 2.4 GHz powerful radio frequency band and transmits very clear signal to control the shutter of Canon, Nikon, Panasonic and Sony. Just pressing the controller rocker, you can control the camera exposure, real-time capture and self-portrait.
Damping Buffer
When the dolly starts and stops and changes direction, there will be damping buffer to make every movement is perfectly smooth.
Strong Anti-interference
Three band switching, multiple sets of equipment can work at the same time with super anti-interference.
Large Torque Sepping Motor
The horizontal pulling force load reaches 50kg
Large Capacity Lithium Battery
magnesium aluminum alloy drawing shell,CNC refining, anodizing process, LED electricity display, with Sony V-shaped latch.
Dolly
Size: 328x375x140mm (length x width x height)
Weight: 2.8kg
Bearing weight: 50kg
Pulley: 2 x 4 wheels
Bowl: 75&100mm (standard), 150mm (optional)

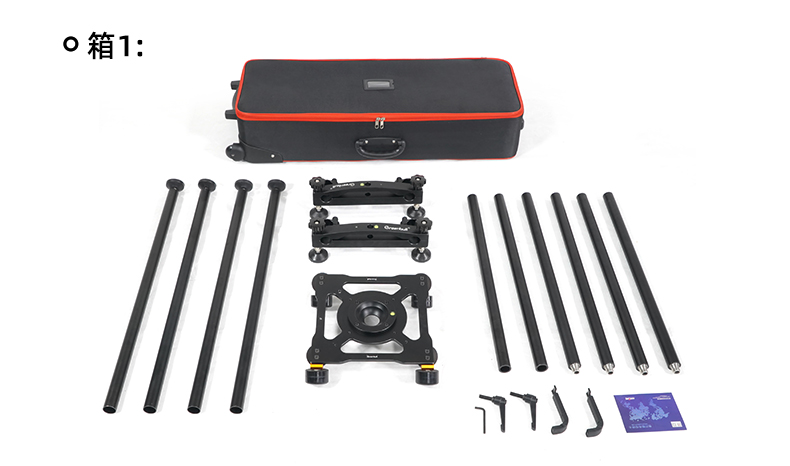

Version Configuration
| Standard version (BX200) | Extended version (BX 200L) | |
| Total Length of  Track | 2M | 3.47M |
| Track Distance | 250MM | 250MM |
| Pipe Diameter | 32MM | 32MM |
| Length | Standard track 667mm;
Bridge track: 800mm; Extended track: 667mm |
|
| Standard Track | 2×2 | |
| Bridge Track | / | X1 |
| Extended Track | 2×1 | 2×2 |
| Elevated Feet | X4 | X6 |
| Roller Bag | X1 | x2 |
| 150mm Bowl | Optional | |
| Montion Control
Assembly |
Optional: Video Version, delay photography version | |
| Others | The aperture of the suitable lamp bracket is 5 / 8 “;
There are 3 / 8 “- 16 and 1 / 4” – 20 screw holes at the bottom of the support feet. |
|
Comparison of electric control parameters of BX200
| Video Version (BX-V) | Time-lapse shooting(BX-TL) | |
| Frequency | 2.4G | |
| Control Distance | Open environment ≥ 50m | |
| Speed Range | ≤ 4 S / M | High gear: ≤ 6 S / M; low gear: ≤ 17 s / M |
| Horizontal Tension | Pull 50kg load | Pull 50kg load |
| Shutter Control | / | Wireless shutter controller |
| Remote Control | Remote-control handle | LCD remote control |
| Function | AB point, automatic loop,
gently start-stop |
Time-lapse shooting, AB point, automatic loop |
| Battery | Standard configuration: 5200mAh (endurance time: about 6 hours)
optional: 7800mAh (endurance time: about 9 hours) |
|
