Project Description
Free Combination, Diverse Usage and Easily Meet the Challenge
With 16-wheels dolly can carry heavy equipment,payload up to 70kg.
1m height-adjustable feet ——more convenient and flexible.
2.4m spliced rail——set up freely and easily .
Roller bag package—— Portable always.
Become motion control slider after motor system set up, realizing remote control.
Whether it’s in filming,TV recorded or live btoadcast,BX300 can meet the challenges easily.

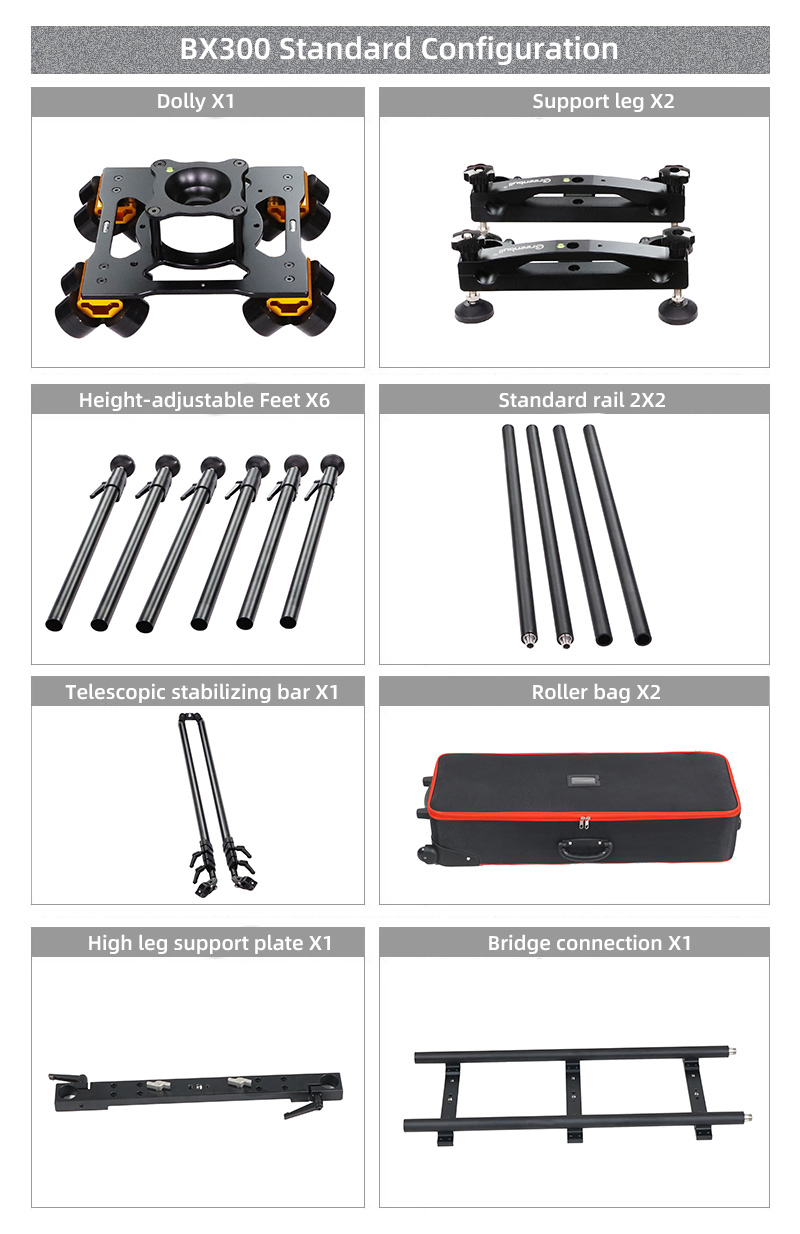

| Dolly-4 x 4 wheels | ||||||
| Dimension | 328x375x140mm | |||||
| Dead weight | 4.4 kg | |||||
| Payload | 70kg | |||||
| Bowl | 75 & 100mm (standard), 150mm (optional) | |||||
| Rail （Standard） | ||||||
| Total Length | 2.4 m | |||||
| Gauge | 250mm | |||||
| Pipe diameter | 32mm | |||||
| Standard Rail | 2×2 | |||||
| Bridging rail | ×1 | |||||
| Height-adjustable Feet | ×6 | |||||
| Roller Portable Bag | ×2 | |||||
| 150mm Bowl | Optional | |||||
| Motion Control Kit | Optional： Video Shooting/Time-laspe shooting |
|||||
 |

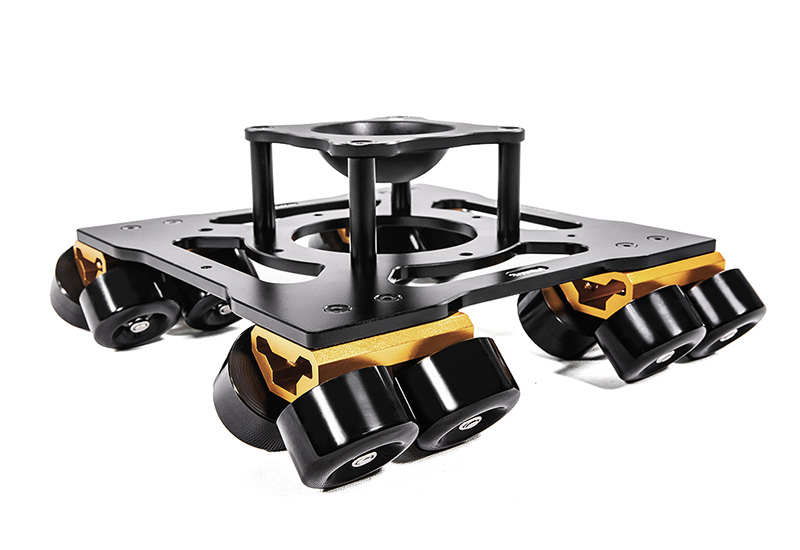

4×4 Wheels Dolly
CNC refined dolly,mute track wheel, runs more smoothly,payload 70kg,handles large camera equipment easily. |
  |

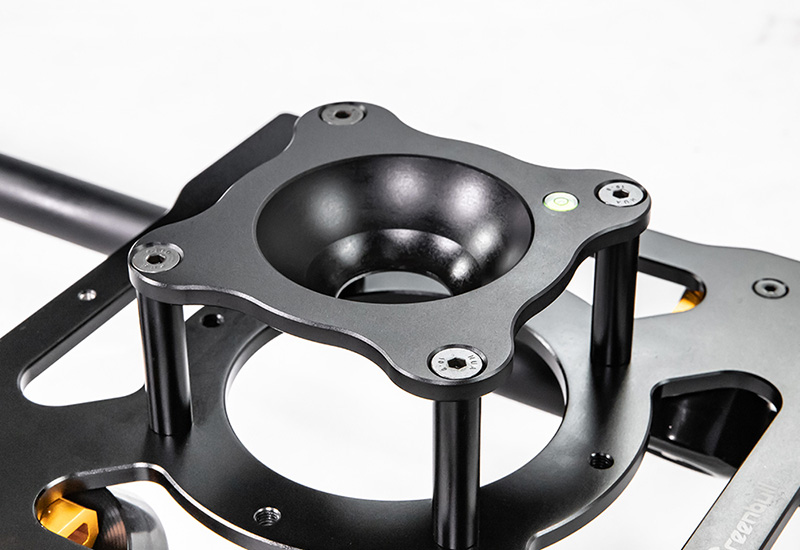

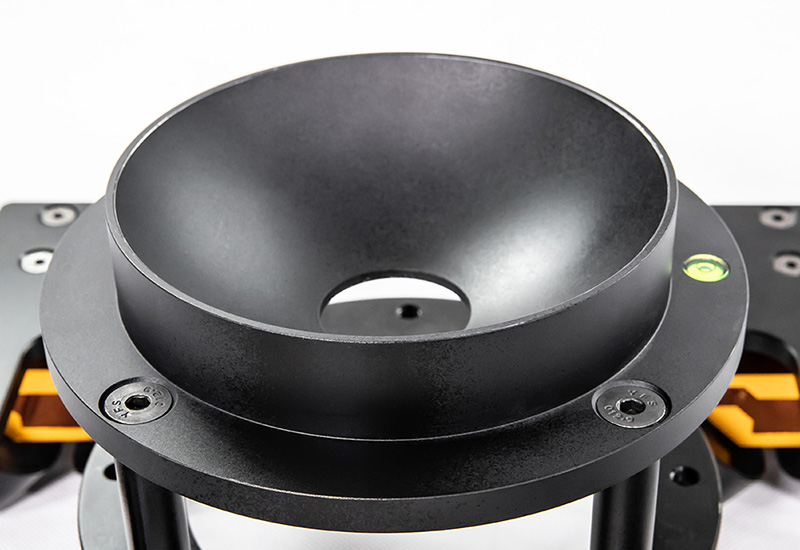

Multi-caliber Bowl
Standard 100&75mm bowl, optional 150mm bowl, inclusive and flexible to use. |
  |

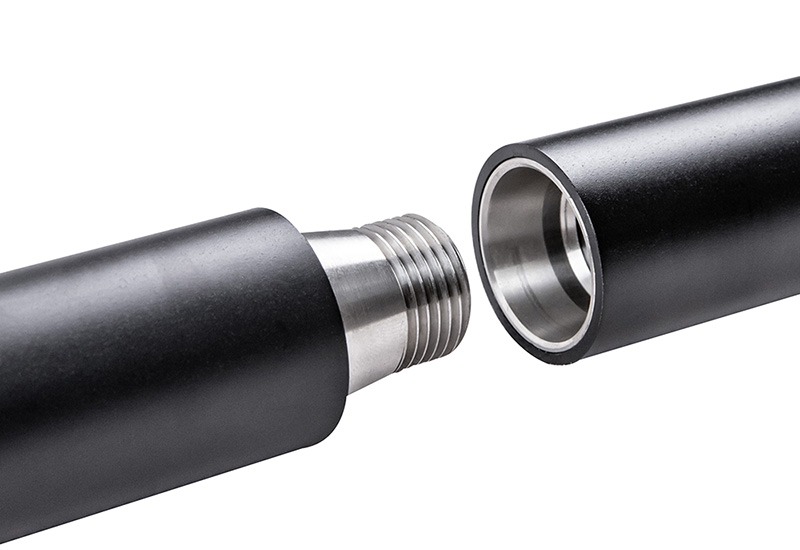

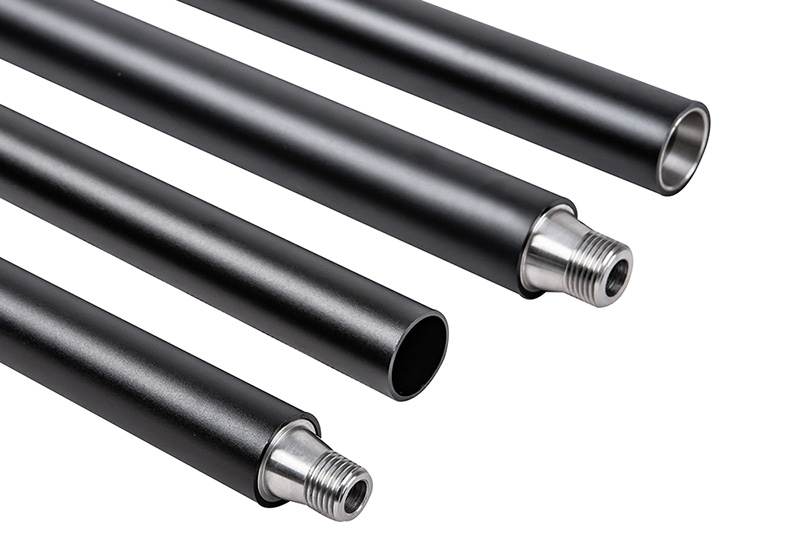

2.4m Spliced Slide Rail
Made of aviation aluminum alloy, with stainless steel threads butted, tight joints and easy assembly. |
 |

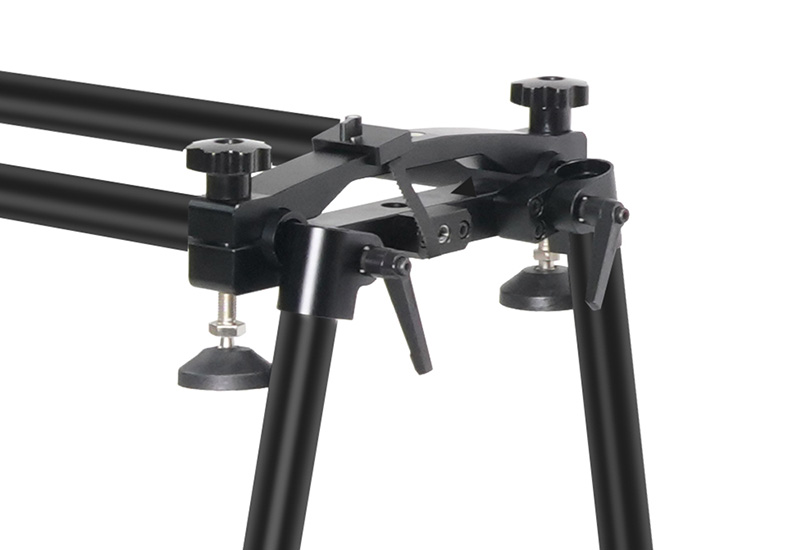

Height-adjustable Feet
Adjustment range : 0.5 ~ 1m.Meet the needs of shooting requirements. |
 |

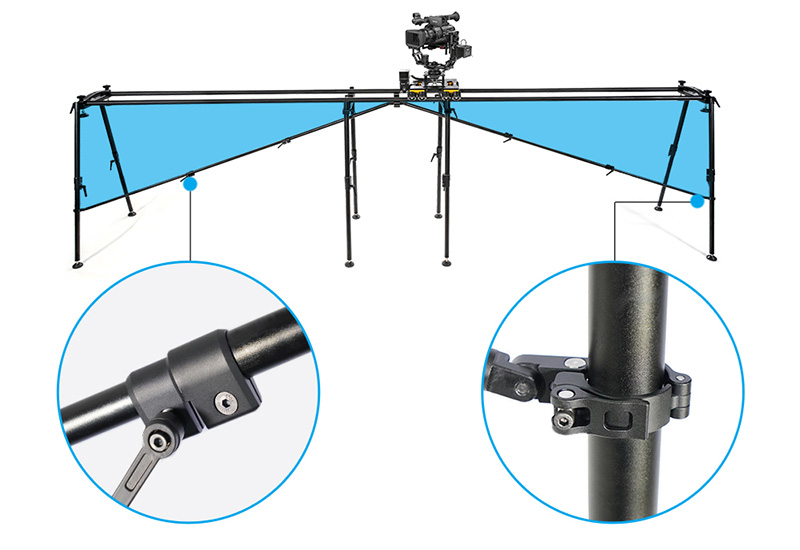

Telescopic Stabilizing Bar
According to the triangular stability principle to enhance slider’s stability. |
 |
Roller Portable Bag
Super convenient to carry so you can take it very easily. |
