Project Description
5m splicing rail | 16-wheels dolly | Payload 70kg | 1m high leg | 100&75 bowl | Electronic control system

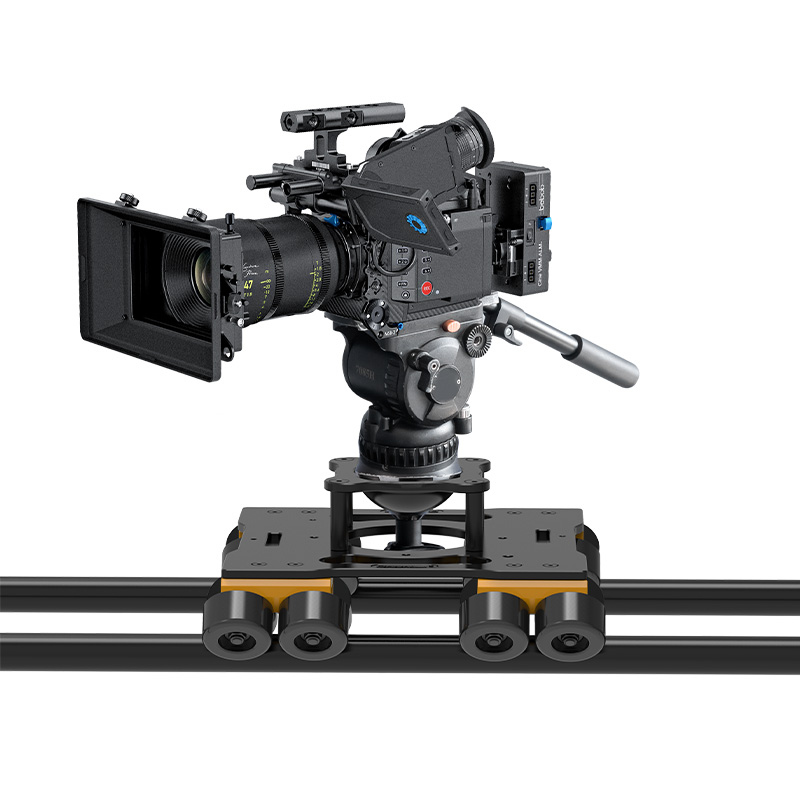

Greenbull BX300L Portable Camera Slider

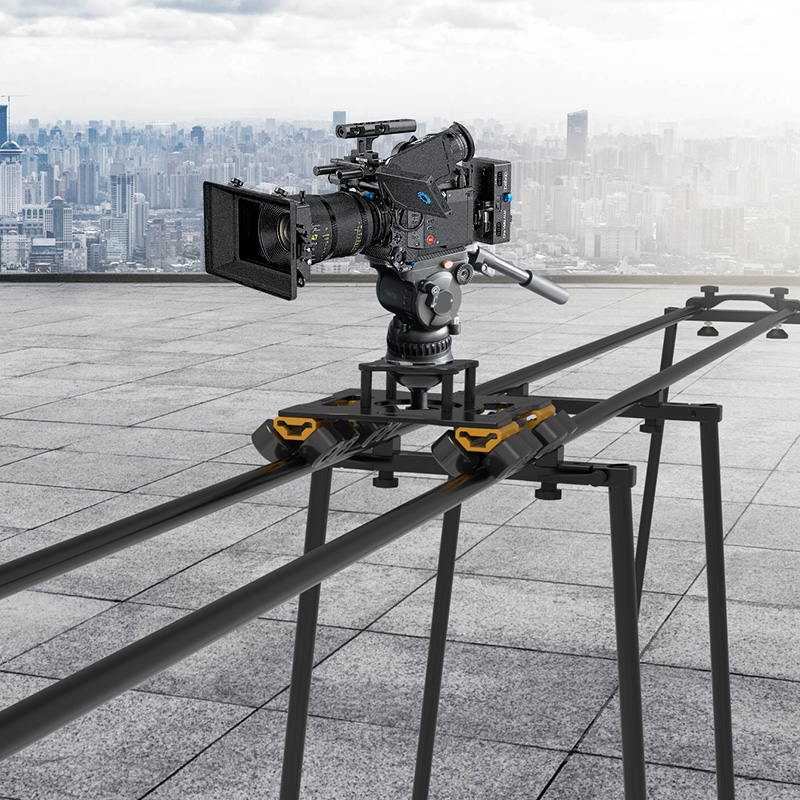

BX300L portable camera slider full length of 5 meters, with 16 wheels dolly, 1 meter high legs, payload 70 kg, roller bag storage, easy to carry.Equipped with electronic control system, BX300L can be composed of remote control camera robot. Whether it is film and television creation or live event shooting, it is easy to deal.
| Dolly | |

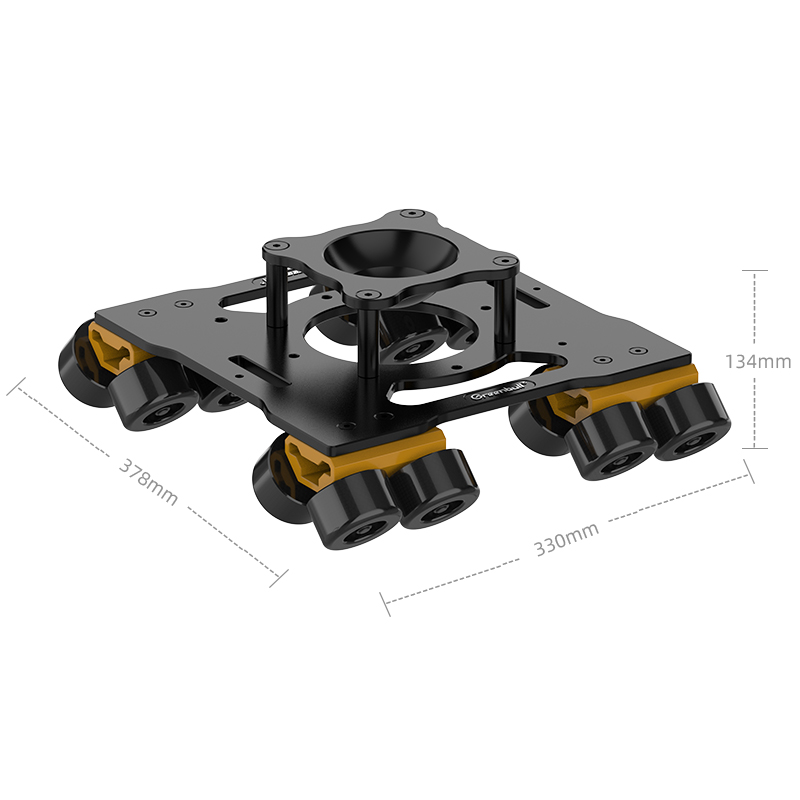

| Size: | 378x330x134mm (LxWxH) |
| Self-weight: | 4.5kg |
| Load capacity: | ≤70kg |
| Wheel: | 4 wheels x 4 sets |
| Bowl: | 75&100mm (standard)、150mm (optional) |
| Rail | |
| Material: | Aluminum alloy (black anodized), stainless steel |

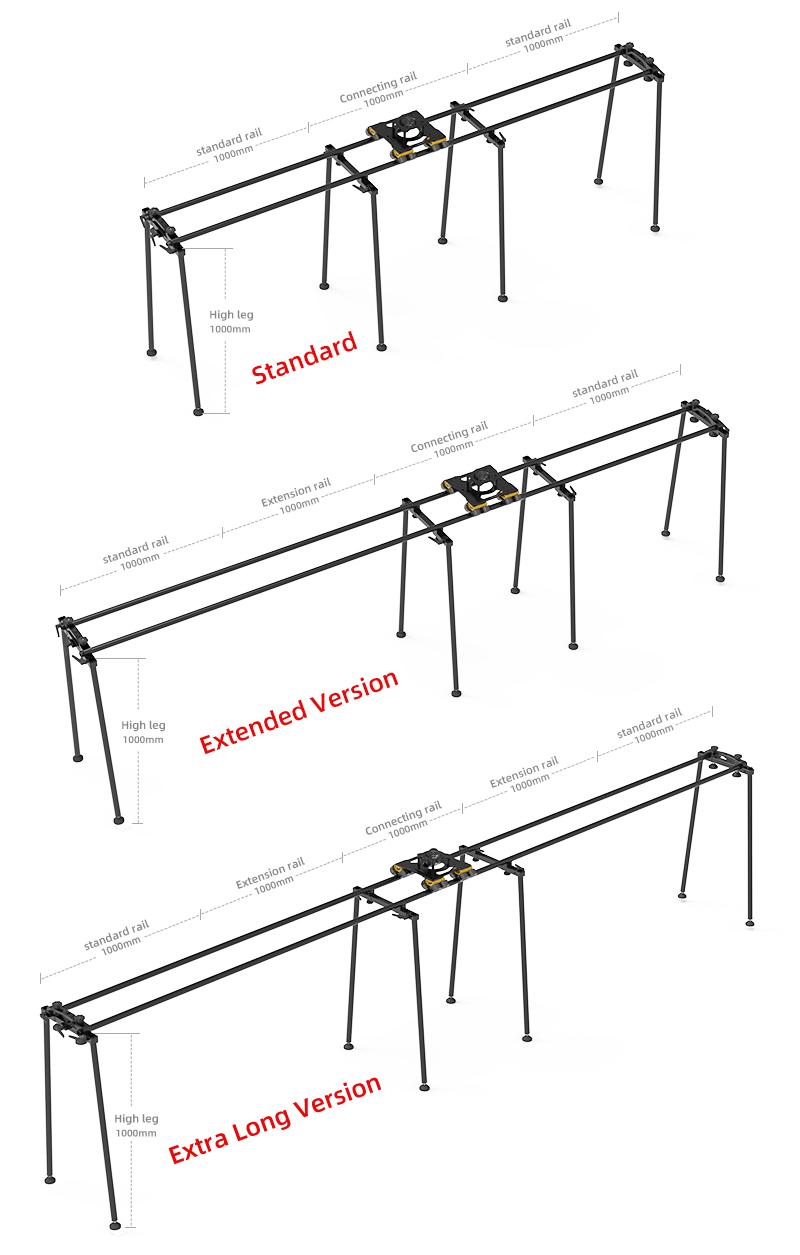

| standard version: | 3108x682x1170mm (with high leg) |
| Extended version: | 4108x682x1170mm (with high leg) |
| Extra long version: | 5108x682x1170mm (with high leg) |
| Gauge: | 250mm |
| Pipe diameter: | 32mm |
| Weight: | standard rail 2kg/section，Connecting rail 8kg (with high leg)，
Extension rail 2.2kg/section |
 |

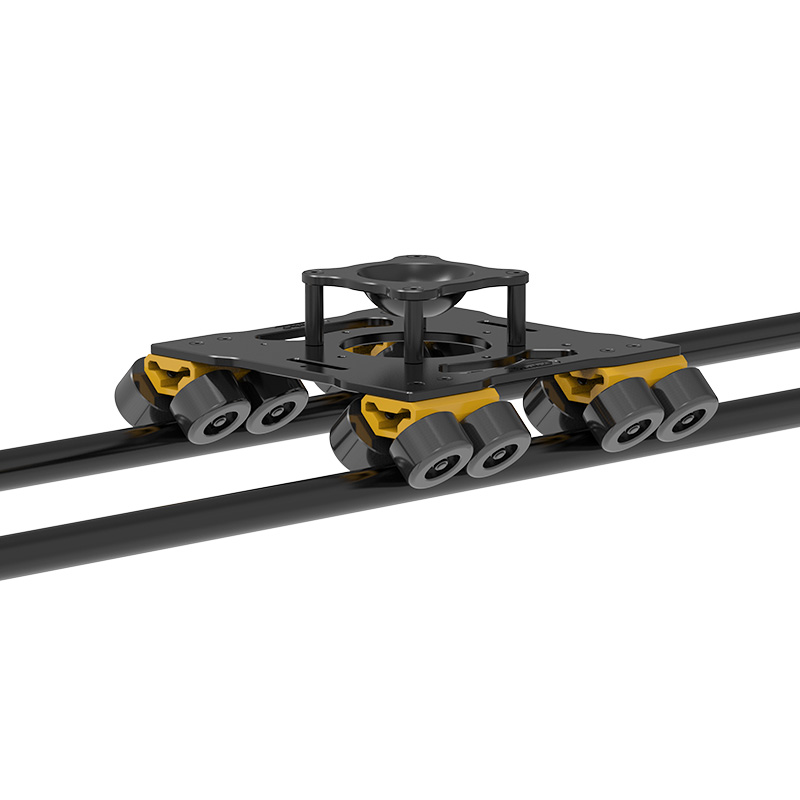

16 Wheels Dolly
CNC refined, 4×4 wheels mute rail wheels, running smoothly and smoothly. |
 |

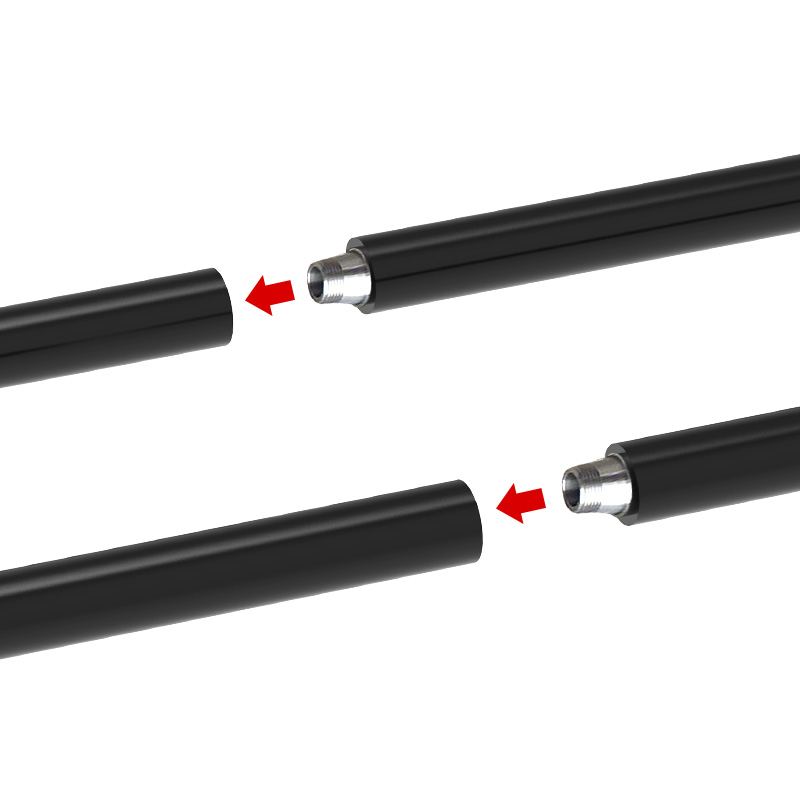

5 M Splicing Rail
Made of aviation aluminum alloy, stainless steel threaded butt joints, tight seams, easy assembly, total length up to 5 meters. |
 |
Payload 70kg
With a weight capacity of 70kg, it can easily cope with large camera equipment. |
 |

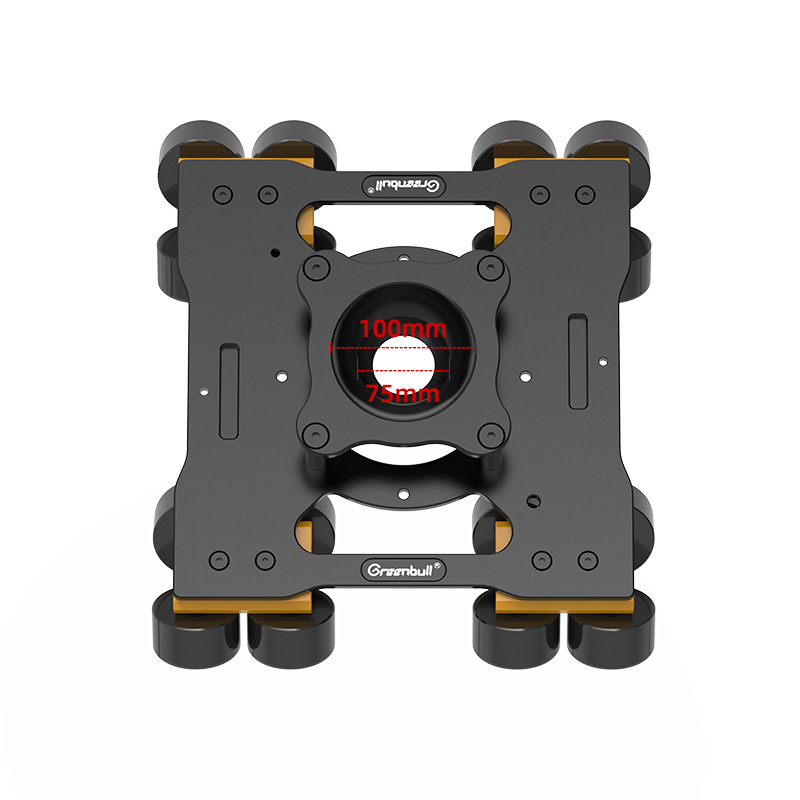

100&75 Bowl
Standard 100&75mm bowl, optional 150mm bowl. |
 |

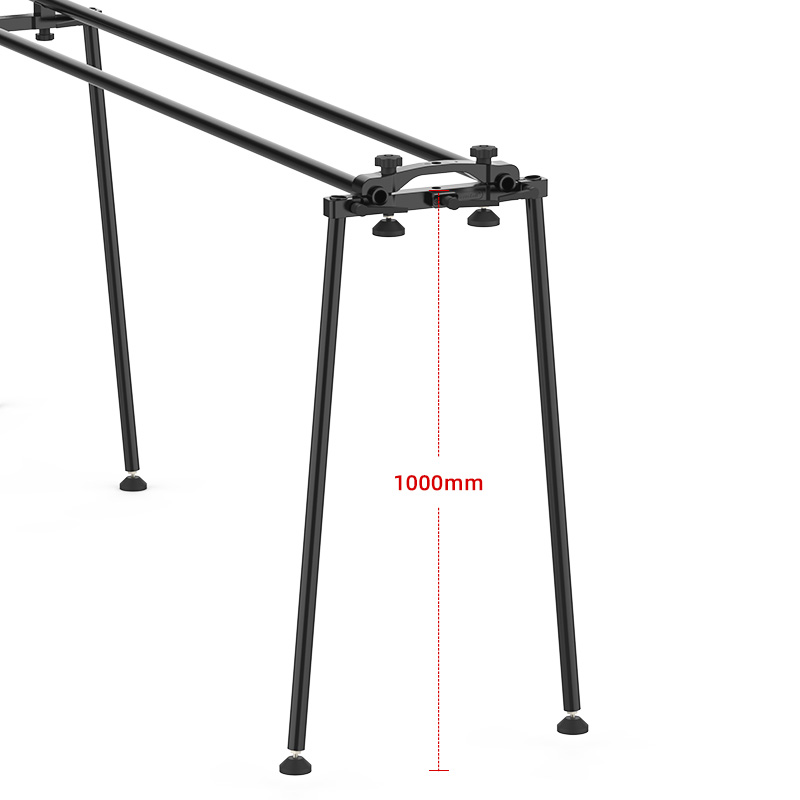

1M High Leg
Standard with eight 1 meter high legs, adjustable height, flexible use. |
 |
Rolling Bag
Easy to carry. |
|
|

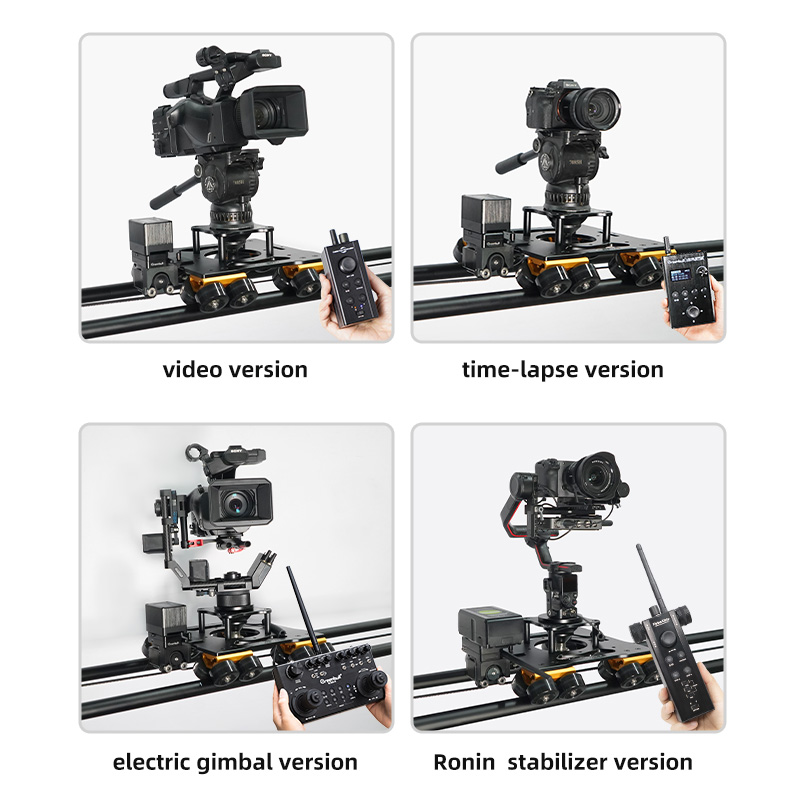

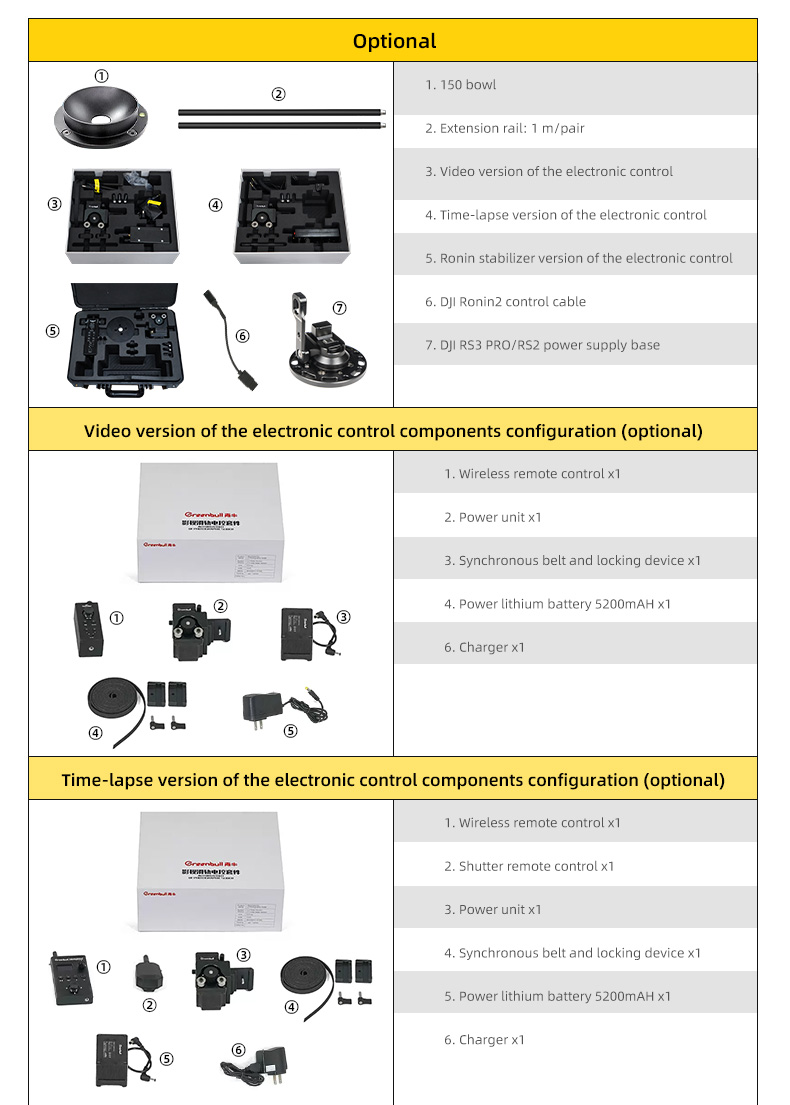

Electronic Control System
BX300L can be equipped with a variety of electronic control systems from Greenbull to form a remote-controlled camera robot. |
 |
Dolly
Size: 378x330x134mm (LxWxH) Self-weight: 4.5kg Load capacity: ≤70kg Wheel: 4 wheels x 4 sets Bowl: 75&100mm (standard), 150mm (optional) |
 |
Rail
Material: Aluminum alloy (black anodized), stainless steel Size: standard version: 3108x682x1170mm Extended version: 4108x682x1170mm Extra long version: 5108x682x1170mm Gauge: 250mm Pipe diameter: 32mm Weight: standard rail 2kg/section Connecting rail 8kg (with high leg) Extension rail 2.2kg/section |
